July 24, 2025 — KOTEM is pleased to present the latest features of the powerful EVOLVE Suite of software packages. EVOLVE enables you to efficiently define, communicate, and monitor design intent across your manufacturing enterprise.

The EVOLVE 12.0 Suite comprises (4) software packages:



What’s new in EVOLVE Design 12.0?

Major Enhancements

  • Smarter design workflows with improved history tracking and more flexible point generation
  • Better GD&T coverage and validation with new proofing messages
  • Advanced tolerance visualization and control for complex 3D profiles
  • Redesigned Features panel for clarity and efficiency
  • Faster performance and more consistent user experience

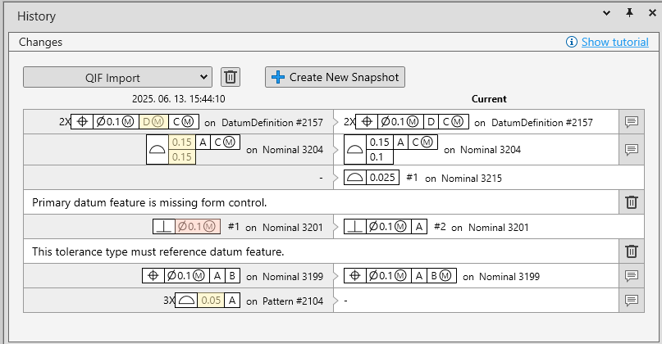

History panel

  • Add Comments to every modification to document why a change was made – enabling better traceability and collaboration.
  • Delete snapshots that are no longer needed – keeping your history panel clean and focused.

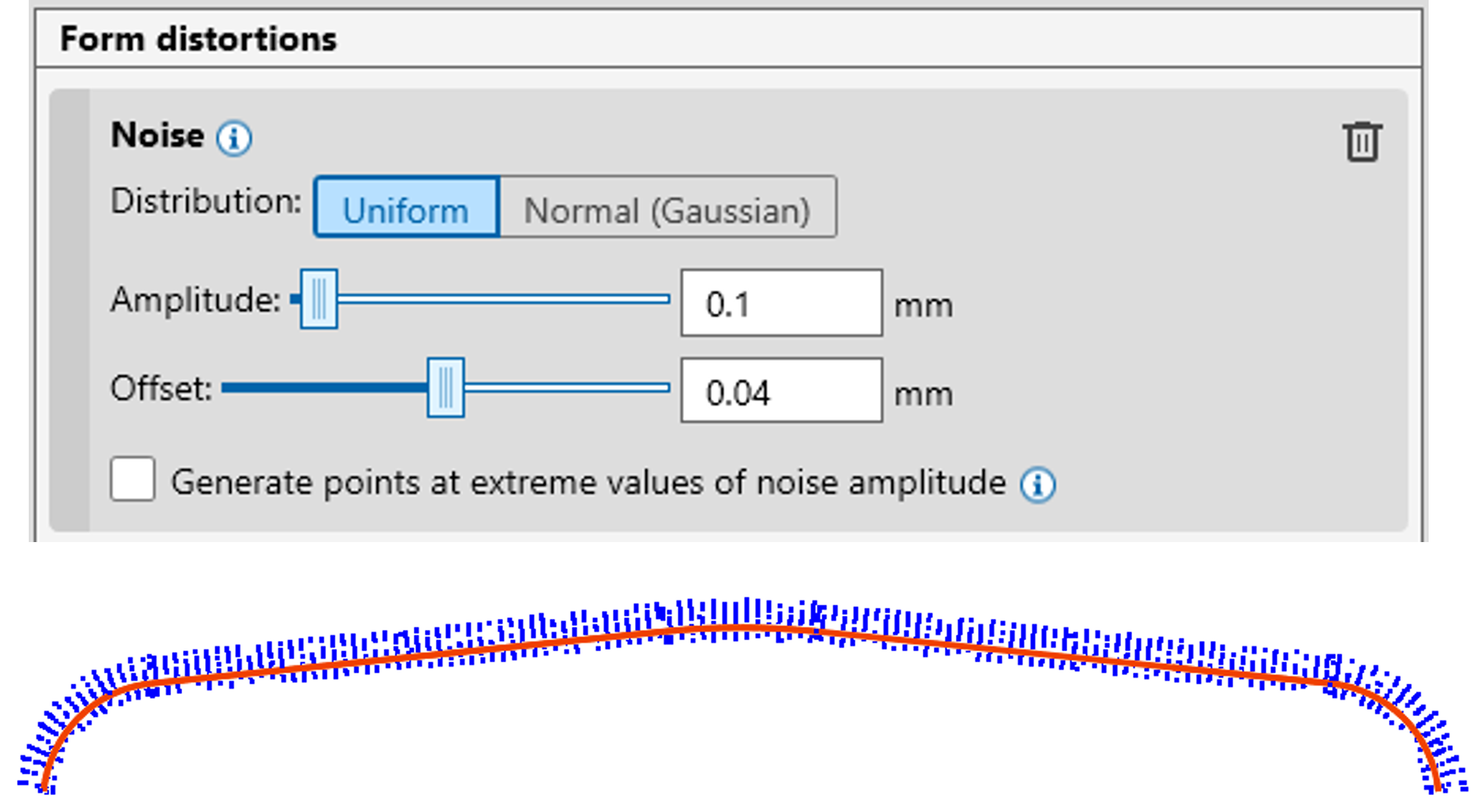

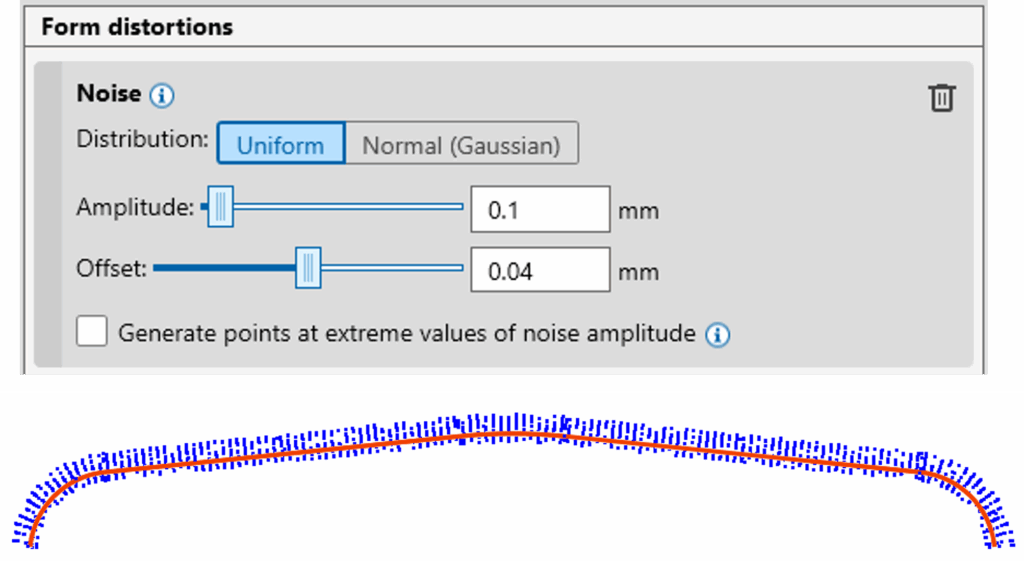

Point Generator

New Offset parameter introduced for the Noise filter

  • Allows differentiated point generation in the plus vs minus material directions
  • Provides more realistic simulation and inspection scenarios

GD&T Proofing

New Proofing message group: Uncontrolled Features and Geometries

Includes two new messages:

  1. “Some features lack tolerances. Consider specifying them for complete definition.” – Highlights under-defined features, ensuring complete GD&T coverage
  2. “There are non-toleranced CAD geometries in the project.” – Enables quick selection of all such geometries for bulk tolerance definition

GD&T/GPS Enhancements I.

Tolerance zone visualization now available for:

  • Profile tolerances on extruded/revolved surfaces (3D)
  • Non-uniform Profile tolerances

GD&T/GPS Enhancements II.

Tangent plane modifier supported for Orientation & Profile tolerances

“Measured like” option lets users specify whether extruded surfaces are treated as 2D or 3D

Features Panel

  • Complete redesign of the UI for more intuitive navigation
  • Traditional tolerances are no longer listed as features → clearer overview
  • New “Based on” column shows the number of points associated with each feature
  • Modernized Feature Data tab for faster understanding and cleaner layout

Other Enhancements I.

  • Performance improvements across the board for faster, smoother operation
  • Context menus have been cleaned and unified across the entire software
  • QIF export dialog updated for a more user-friendly export workflow

Other Enhancements II.

  • Improved axis-like result display for clearer 3D feedback
  • Project unit can now be changed even after the CAD model has been imported
  • Patterns can now be created from any feature type – measured, constructed, or theoretical
    • Constructed Pattern option has been removed as it’s no longer needed
  • Width features can now be created from any point-based plane in 3D or line in 2D – includes measured, constructed, and theoretical references
  • Labels retain their position after adding or removing geometries to a feature



We hope the new features and improvements of EVOLVE Suite 12.0 will assist you to efficiently define, communicate, and monitor design intent across your manufacturing enterprise.

Feel free to contact us with any question!
